How to Install Pull Up Bar Right

If your pull-up bar shifts, squeaks, or chews up the frame, the problem is usually installation, not the bar itself. If you want to know how to install pull up bar setups safely, start by matching the bar type to your space, wall structure, and training style. Get that part right, and every rep feels more stable.



Before You Install a Pull Up Bar

The best setup depends on your home. A doorway bar is fast and apartment-friendly. A wall or ceiling bar gives more stability, but only if you mount it into solid framing.

Do not guess on structure. Drywall alone is not enough. Hollow trim is not enough. A clean install starts with finding the load-bearing point, checking clearances, and confirming the bar's weight rating exceeds your bodyweight plus movement force.

Core measurements to check first

Measure doorway width, wall spacing, and headroom before you open the hardware pack. You also need swing clearance. Knees bend during strict pull-ups. They swing more during kipping or leg raises.

A good rule is to leave at least 20 to 24 inches above the bar and enough space below to hang fully without your feet hitting the floor. For apartments, also think about noise. Metal-on-metal movement and wall vibration matter if you train early or late.

Equipment Specs That Matter

Here are the most common bar types and the practical specs to compare before installation.

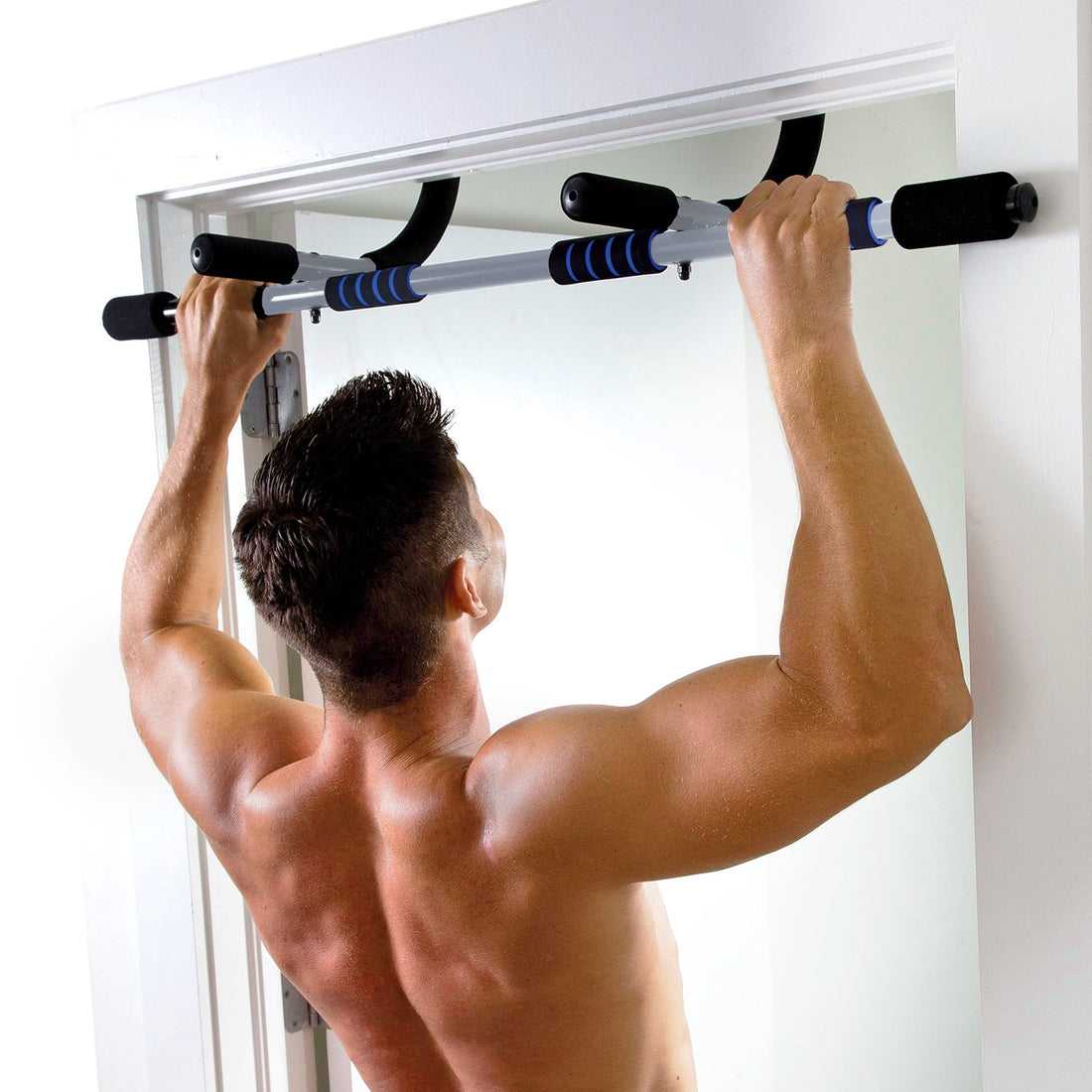

Doorway Leverage Pull-Up Bar

This style hooks over the top of a door frame and braces against the trim.

• Footprint Dimensions (folded vs. unfolded): Typically non-folding; about 36-40 in. wide x 10-14 in. deep x 8-10 in. tall installed
• Weight Capacity: Usually 220-300 lbs
• Resistance Type / Motor Horsepower: Bodyweight resistance; no motor
• Noise Level Assessment (Crucial for apartments/upstairs): Low to moderate; can creak on trim if padding shifts

Best if you want easy setup and fast removal. Not ideal for explosive reps or aggressive swinging. The trim and frame condition matter more than people think.

Screw-Mounted Door Frame Bar

This bar usually installs inside or across the door frame with brackets and screws.

• Footprint Dimensions (folded vs. unfolded): Usually non-folding; bar width 24-36 in., depth 3-6 in. from frame
• Weight Capacity: Usually 250-300 lbs
• Resistance Type / Motor Horsepower: Bodyweight resistance; no motor
• Noise Level Assessment (Crucial for apartments/upstairs): Low when tightened correctly; moderate if brackets loosen over time

This is the better choice if you want a cleaner look and more fixed stability than a leverage bar. The trade-off is permanent holes in the frame.

Wall-Mounted Pull-Up Bar

This bar bolts into wall studs or masonry.

• Footprint Dimensions (folded vs. unfolded): Fixed models average 40-50 in. wide x 20-30 in. deep x 18-24 in. tall; foldable models may reduce depth to 5-8 in.
• Weight Capacity: Usually 300-500 lbs, sometimes higher
• Resistance Type / Motor Horsepower: Bodyweight resistance; no motor
• Noise Level Assessment (Crucial for apartments/upstairs): Low if anchored into studs well; moderate during dynamic work due to wall vibration

Wall-mounted bars feel more gym-ready. They also demand the most accuracy during install. Miss the stud center and the setup is compromised.

Ceiling-Mounted Pull-Up Bar

This option bolts into ceiling joists and works well in basements or garages.

• Footprint Dimensions (folded vs. unfolded): Fixed models average 32-48 in. wide x 20-36 in. drop from ceiling; some foldable versions collapse to 6-10 in. drop
• Weight Capacity: Usually 300-600 lbs
• Resistance Type / Motor Horsepower: Bodyweight resistance; no motor
• Noise Level Assessment (Crucial for apartments/upstairs): Moderate; joist vibration can transfer sound to upper floors

Ceiling bars are great when wall space is limited. They are less ideal for upstairs apartments because structure-borne noise can travel.

How to Install Pull Up Bar in a Doorway

This is the easiest route for most homes. It is also the one people rush.

Leverage-style doorway install

Start by measuring the doorway opening and trim depth. Most leverage bars fit standard residential frames, but not all. Check the manufacturer width range before setup.

Set the top crossbar on the far side of the trim. Lower the bar until the support arms sit flat against the near side of the frame. Make sure both contact points are even. If one side floats, stop and reset.

Before full loading, pull down with partial bodyweight. Listen for movement. Watch the trim. If it compresses, cracks, or shifts, that frame is not a good candidate.

For better apartment use, add thin protective pads where allowed by the product design. That can reduce squeaks and paint wear. Do not stack thick foam that changes the angle of contact.

Screw-mounted doorway install

Mark bracket locations carefully and keep them level. Drill pilot holes first. Then fasten into solid wood, not just decorative trim.

Once the bar is seated, test it in stages. First with arm pressure. Then with one foot lightly off the floor. Then with a dead hang. Tighten hardware again after the first few sessions because settling is common.

How to Install Pull Up Bar on a Wall

A wall-mounted bar is the best choice for harder training, but only when anchored correctly.

Use a stud finder, then confirm with a small pilot hole if needed. Stud spacing is often 16 inches on center, but never assume. Mark the centerline of each stud and hold the bracket up to verify hole alignment.

If the bracket holes do not line up with studs, do not rely on drywall anchors for bodyweight work. Use a proper wood backer board secured into multiple studs first, then mount the bar to that board if the product allows it.

Keep the bar high enough for a full hang, but low enough that your head clears the ceiling. In low-ceiling rooms, this balance matters. Some users install too high and end up bending their knees and neck every rep.

Once mounted, torque each lag bolt evenly. Then test with gradual loading. A stable bar should not rock, twist, or produce sharp clicking sounds.

How to Install Pull Up Bar on a Ceiling

Ceiling installs demand joist accuracy. Find the joists, mark the centers, and check the bar's mounting pattern against the spacing. Garages and unfinished basements make this easier. Finished ceilings take more patience.

Drill pilot holes into the joists and use the hardware size recommended for the bar. If you are mounting into concrete, use the correct masonry anchors. If you are unsure whether the ceiling is wood joists or just furring strips under drywall, stop and verify first.

This style works well for muscle-up progressions and rings if the design supports them. The trade-off is noise transfer. In upstairs rooms, impact and vibration can travel more than expected.

Common Installation Mistakes

Most failures come from simple errors. The first is mounting into weak material. The second is skipping staged load testing. The third is ignoring movement clearance.

There is also a training mismatch issue. A no-drill doorway bar may be perfect for strict pull-ups, but not for kipping, toes-to-bar, or weighted reps. If your training will progress, install for your future use, not just your first week.

Hardware checks matter too. Re-tighten bolts periodically. Sweat, vibration, and repeated loading can loosen even a good setup.

Small Space and Apartment Tips

If you live in a smaller home, noise and removability matter as much as strength. A leverage doorway bar is usually the safest first choice for renters. It stores fast, avoids drilling, and keeps your workout footprint small.

For upstairs spaces, train smooth. Avoid dropping off the bar. Control your descent. If the bar allows accessories, remove anything that rattles. A quieter setup helps you stay consistent without bothering everyone else.

If you need a more fixed solution, a screw-mounted doorway model can be a smart middle ground. It is more secure than a basic hook-on bar, but still more space-efficient than a wall rig. Brands like Virfit focus on gear that fits real homes, which is exactly what matters here.

How to Choose the Right Setup

Use this checklist before you buy or install.

• Choose doorway leverage if you rent, need fast removal, and do strict bodyweight reps
• Choose screw-mounted doorway if you want a cleaner permanent setup with moderate training demands
• Choose wall-mounted if you want the best stability for higher volume, added weight, or advanced pull-up work
• Choose ceiling-mounted if wall space is limited and you have solid joists with good overhead clearance
• Check your bodyweight against the rated capacity, then add margin for dynamic force
• Match the bar to your ceiling height, doorway trim, and available swing space
• Prioritize lower-noise options if you live upstairs or share walls
• Recheck bolts and contact points regularly after installation

A pull-up bar should make training simpler, not sketchier. Install it with patience, test it like it matters, and every rep after that gets a lot more productive.
